Service Floor Box

Access Floor Opening Type

To accommodate access floor 230mm X 200mm opening

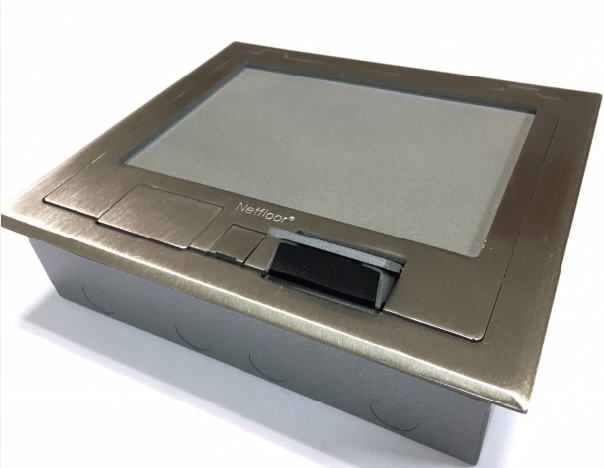

Stainless Steel Lid floorbox
Stainless Steel Lid

．Overall Dimension : 252mm X 220mm
．Height : 60mm (2.36”)
．Power Socket : 13A/240V for BS, 16A/250V for EC
．Ports and 86 Type Plate for Data / Voice jack
SS60BS BS Socket
SS60EC CEE7 Socket

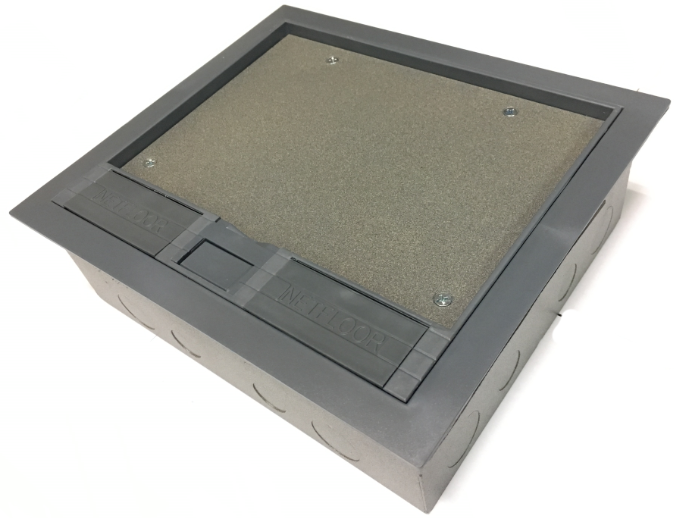

Poly Carbonate Lid floorbox
Poly Carbonate Lid

．Overall Dimension : 252mm X 220mm
．Height : 75mm(2.95”), 100mm (3.94”)
．Power Socket : 13A/240V for BS, 16A/250V for EC
．Ports and 86 Type Plate for Data / Voice jack
SB75BS BS Socket
SB100EC  CEE7 Socket

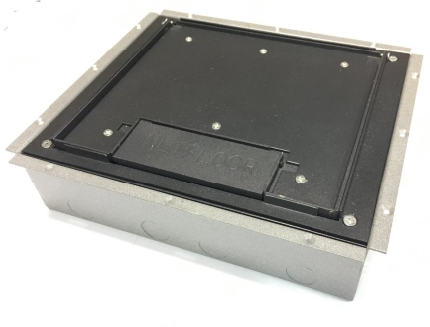

Gray Epoxy Coating Lid floorbox
Gray Epoxy Coating Lid

．Overall Dimension : 252mm X 220mm
．Height : 60mm (2.36”)
．Power Socket : 13A/240V for BS
．Ports and 86 Type Plate for Data / Voice jack
SE60BS BS Socket

Cable Trench Type

To accommodate Netfloor access floor cable trench 90mm width

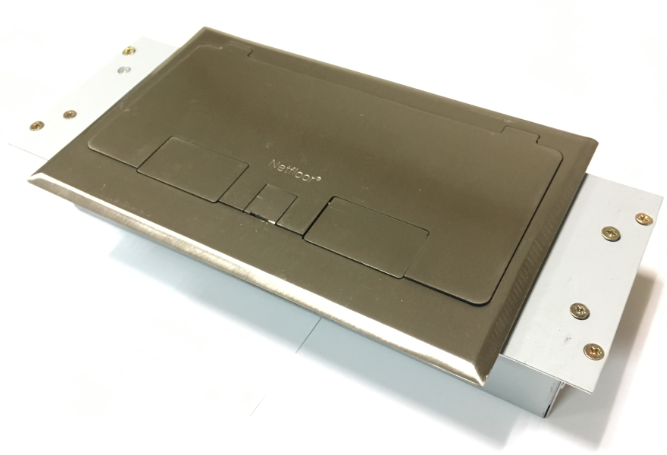

Stainless Steel Lid trench box
Stainless Steel Lid

．Overall Dimension : 320mm X 115mm
．Height : 40mm, 60mm
．Power Socket : 13A/240V for BS, 15A/110V, 20A/110V for US
．3 Port for Data / Voice jack
SS403 & SS603
SS603BS

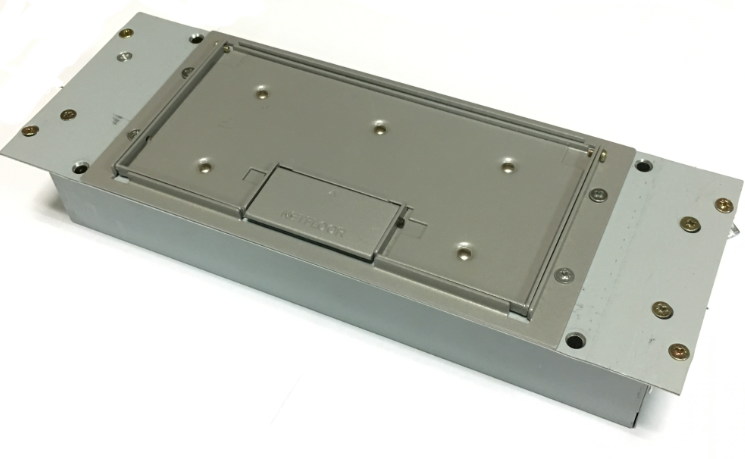

Epoxy Powder Coating Lid trench box
Epoxy Powder Coating Lid

．Overall Dimension : 320mm X 115mm
．Height : 40mm, 60mm
．Power Socket : 13A/240V for BS, 15A/110V, 20A/110V for US
．3 Port for Data / Voice jack
SE403 & SE603
SE603BS
